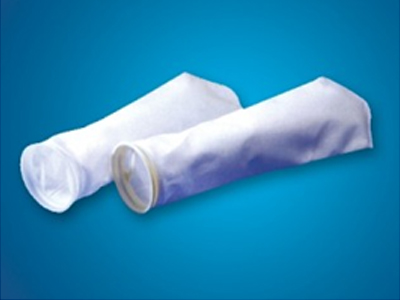

Fully Welded Filter Bag
Our fully welded filter bag series ensures there is no by pass in particles. For no compromises, our fully welded filter bags offer 100% by pass free filtration process with full weld around the plastic collar for perfect sealing as well as the seam of felt bag done by ultra sonic technology.
Features
- Five standard industrial sizes available Strong and reliable construction
- Nose wing hole for possibility of by pass Unique design plastic collar for compression sealing mechanism
- Available in 100% construction Polypropylene and Polyester Bag
- Silicone free needlefelt
Order Specification Code
Specification
- Material used :Polypropylene,PolyesterMicr
- On rating available: 0.5,1,5,10,25,50,75,100,150,200 micron
- Filter Bag Size :#1(7”diaX17”length)
#2(7”diaX32”length)
#3(4”diaX9”length)
#4(4”diaX15”length)
#5(6”diaX20”length)

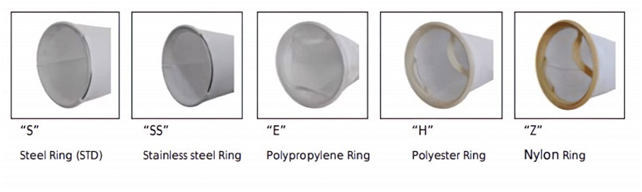

Filter Bag Ring Materials
